Camcorder.
A camcorder (videocamera recorder) is an electronic device that combines a video camera and a video recorder into one unit.[1][2][3] Equipment manufacturers do not seem to have strict guidelines for the term usage. Marketing materials may present a video recording device as acamcorder, but the delivery package would identify content as video camera recorder.
In order to differentiate a camcorder from other devices that are capable of recording video, likemobile phones and digital compact cameras, a camcorder is generally identified as a portable, self-contained device having video capture and recording as its primary function.[4][5]
The earliest camcorders employed analog recording onto videotape. Tape-based camcorders use removable media in the form of video cassettes. Nowadays, digital recording has become the norm, with tape being gradually replaced with other storage media such as internal flash memory, hard drive and SD card. As of January 2011, none of the new consumer-class camcorders announced at the 2011 International Consumer Electronics Show record on tape.[6]
Camcorders that do not use magnetic tape are often called tapeless camcorders, while camcorders that permit using more than one type of medium, like built-in hard disk drive and memory card, are sometimes called hybrid camcorders.
Video cameras originally designed for television broadcast were large and heavy, mounted on special pedestals, and wired to remote recorders located in separate rooms.
As technology advanced, out-of-studio video recording was made possible by means of compact video cameras and portable video recorders. The recording unit could be detached from the camera and carried to a shooting location. While the camera itself could be quite compact, the fact that a separate recorder had to be carried along made on-location shooting a two-man job.[8] Specialized Videocassette recorders were introduced by both JVC (VHS) and Sony (U-matic and Betamax) to be used for mobile work. The advent of the portable recorders helped to eliminate the phrase "film at eleven"—rather than wait for the lengthy process of film developing, recorded video could be shown during the 6 o'clock news.
In 1982 Sony released the Betacam system. A part of this system was a single camera-recorder unit, which eliminated the cable between camera and recorder and dramatically improved the freedom of a cameraman. Betacam used the same format 1/2" tape cassette as Betamax, but running much faster for higher quality and reliability. It quickly became the standard for both news-gathering and in-studio video editing.
In 1983 Sony released the first consumer camcorder—the Betamovie BMC-100P. It used a Betamax cassette and could not be held with one hand, so it was typically resting on a shoulder. In the same year JVC released the first camcorder based on VHS-C format.[9]
In 1985 Sony came up with its own compact video cassette format—Video8. Both VHS-C and Video8 had their benefits and drawbacks, and neither won the format war.
In 1985, Panasonic, RCA, and Hitachi began producing camcorders that recorded to full-sized VHS cassette and offered up to 3 hours of record time. These shoulder-mount camcorders found a niche with videophiles, industrial videographers, and college TV studios. Super VHS (S-VHS) full-sized camcorders were released in 1987 which exceeded the broadcast quality of the day and provided an inexpensive way to collect news segments or videographies. Sony matched this with the release of Hi8, an upgraded version of Video8.
In 1986 Sony introduced the first digital video format, D1. Video was recorded in uncompressed form and required enormous bandwidth for its time. In 1992 Ampex used D1 form-factor to create DCT, the first digital video format that utilized data compression. The compression utilized discrete cosine transform algorithm, which is used in most modern commercial digital video formats.
In 1995 Sony, JVC, Panasonic and other video camera manufacturers launched DV, which quickly became a de-facto standard for home video production, for independent filmmaking and for citizen journalism. In the same year Ikegami introduced Editcam - the first tapeless video recording system.
In 2000 Panasonic launched DVCPRO HD, expanding the DV codec to support high definition. The format was intended for use in professional camcorders and used full-size DVCPRO cassettes. In 2003 Sony, JVC, Canon and Sharp introduced HDV, the first truly affordable high definition video format, which used inexpensive MiniDV cassettes.
In 2003 Sony pioneered XDCAM, the first tapeless video format, which uses Professional Disc as recording media. Panasonic followed next year, offering P2 solid state memory cards as recording medium for DVCPRO HD video.
In 2006 Panasonic and Sony introduced AVCHD as an inexpensive consumer-grade tapeless high definition video format. Presently AVCHD camcorders are manufactured by Sony, Panasonic, Canon, JVC and Hitachi.
In 2007 Sony introduced XDCAM EX, which offers similar recording modes to XDCAM HD, but records on SxS memory cards.
With proliferation of file-based digital formats the relationship between recording media and recording format became weaker than ever: the same video can be recorded onto different media. With tapeless formats, recording media has become a storage device for digital files, signifying convergence of video and computer industries.
Media
Camcorders have found use in nearly all corners of electronic media, from electronic news organizations to TV/current-affairs productions. In locations away from a distribution infrastructure, camcorders are invaluable for initial video acquisition. Subsequently, the video is transmitted electronically to a studio/production center for broadcast. Scheduled events such as official press conferences, where a video infrastructure is readily available or can be feasibly deployed in advance, are still covered by studio-type video cameras (tethered to "production trucks.")
Home video
For casual use, camcorders often cover weddings, birthdays, graduation ceremonies, children growing up, and other personal events. The rise of the consumer camcorder in the mid to late '80s led to the creation of shows such as the long-running America's Funniest Home Videos, where people could showcase homemade video footage.
Politics
Politics
Political protestors who have capitalized on the value of media coverage use camcorders to film things they believe to be unjust. Animal rights protesters who break into factory farms and animal testing labs use camcorders to film the conditions the animals are living in. Anti-hunting protesters film fox hunts. People expecting to witness political crimes use cameras for surveillance to collect evidence. Activist videos often appear on Indymedia.
The police use camcorders to film riots, protests and the crowds at sporting events. The film can be used to spot and pick out troublemakers, who can then be prosecuted in court. In countries such as the United States, the use of compact dashboard camcorders in police cars allows the police to retain a record of any activity that takes place in front of the car, such as interaction with a motorist stopped on the highway.
Entertainment and movie.
Camcorders are often used in the production of low-budget TV shows where the production crew does not have access to more expensive equipment. There are even examples of movies shot entirely on consumer camcorder equipment (such as The Blair Witch Project and 28 Days Later). In addition, many academic filmmaking programs have switched from 16mm film to digital video, due to the vastly reduced expense and ease of editing of the digital medium as well as the increasing scarcity of film stock and equipment. Some camcorder manufacturers cater to this market, particularly Canon and Panasonic, who both support "24p" (24 frame/s, progressive scan; same frame rate as standard cinema film) video in some of their high-end models for easy film conversion.
Entertainment and movie.
Camcorders are often used in the production of low-budget TV shows where the production crew does not have access to more expensive equipment. There are even examples of movies shot entirely on consumer camcorder equipment (such as The Blair Witch Project and 28 Days Later). In addition, many academic filmmaking programs have switched from 16mm film to digital video, due to the vastly reduced expense and ease of editing of the digital medium as well as the increasing scarcity of film stock and equipment. Some camcorder manufacturers cater to this market, particularly Canon and Panasonic, who both support "24p" (24 frame/s, progressive scan; same frame rate as standard cinema film) video in some of their high-end models for easy film conversion.
Even high-budget cinema is done using camcorders in some cases; George Lucas used Sony CineAlta camcorders in two of his three Star Wars prequel movies. This process is referred to as digital cinematography.
[edit]
Conversion of film cameras to digital.
When digital cameras became common, a question many photographers asked was whether their film cameras could be converted to digital. The answer was yes and no. For the majority of 35 mm film cameras the answer is no, the reworking and cost would be too great, especially as lenses have been evolving as well as cameras. For most a conversion to digital, to give enough space for the electronics and allow a liquid crystal display to preview, would require removing the back of the camera and replacing it with a custom built digital unit.
Many early professional SLR cameras, such as the Kodak DCS series, were developed from 35 mm film cameras. The technology of the time, however, meant that rather than being digital "backs" the bodies of these cameras were mounted on large, bulky digital units, often bigger than the camera portion itself. These were factory built cameras, however, not aftermarket conversions.
A notable exception is the Nikon E2, followed by Nikon E3, using additional optics to convert the 35mm format to a 2/3 CCD-sensor.
A few 35 mm cameras have had digital camera backs made by their manufacturer, Leica being a notable example. Medium format and large format cameras (those using film stock greater than 35 mm), have a low unit production, and typical digital backs for them cost over $10,000. These cameras also tend to be highly modular, with handgrips, film backs, winders, and lenses available separately to fit various needs.
The very large sensor these backs use leads to enormous image sizes. For example Phase One's P45 39 MP image back creates a single TIFF image of size up to 224.6 MB, and even greater pixel counts are available. Medium format digitals such as this are geared more towards studio and portrait photography than their smaller DSLR counterparts; the ISO speed in particular tends to have a maximum of 400, versus 6400 for some DSLR cameras. (Canon EOS-1D Mark IV and Nikon D3S have ISO 12800 plus Hi-3 ISO 102400).
Integration.
Many devices include digital cameras built into or integrated into them. For example, mobile phones often include digital cameras; those that do are known as camera phones. Other small electronic devices (especially those used for communication) such as PDAs, laptops and BlackBerry devices often contain an integral digital camera, and most 21st century camcorders can also make still pictures.
Due to the limited storage capacity and general emphasis on convenience rather than image quality, almost all these integrated or converged devices store images in the lossy but compact JPEG file format.
Mobile phones incorporating digital cameras were introduced in Japan in 2001 by J-Phone. In 2003 camera phones outsold stand-alone digital cameras, and in 2006 they outsold all film-based cameras and digital cameras combined. These camera phones reached a billion devices sold in only five years, and by 2007 more than half of the installed base of all mobile phones were camera phones. Sales of separate cameras peaked in 2008. [9]
Integrated cameras tend to be at the very lowest end of the scale of digital cameras in technical specifications, such as resolution, optical quality, and ability to use accessories. With rapid development, however, the gap between mainstream compact digital cameras and camera phones is closing, and high-end camera phones are competitive with low-end stand-alone digital cameras of the same generation.

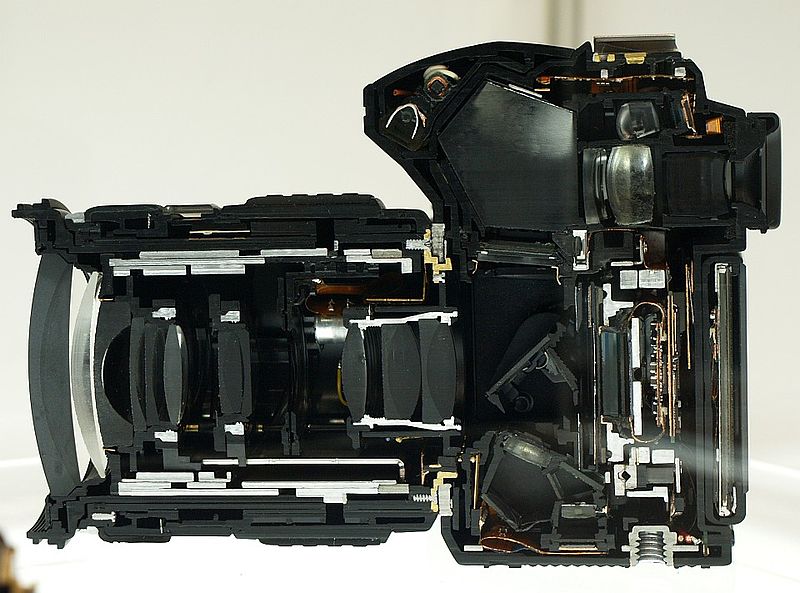

Digital single lens reflex cameras
Digital single-lens reflex cameras (DSLRs) are digital cameras based on film single-lens reflex cameras (SLRs). They take their name from their unique viewing system, in which a mirror reflects light from the lens through a separate optical viewfinder. In order to capture an image the mirror is flipped out of the way, allowing light to fall on the imager. Since no light reaches the imager during framing, autofocus is accomplished using specialized sensors in the mirror box itself. Most 21st century DSLRs also have a "live view" mode that emulates the live preview system of compact cameras, when selected.
These cameras have much larger sensors than the other types, typically 18 mm to 36 mm on the diagonal (crop factor 2, 1.6, or 1). This gives them superior low-light performance, less depth of field at a given aperture, and a larger size.
They make use of interchangeable lenses; each major DSLR manufacturer also sells a line of lenses specifically intended to be used on their cameras. This allows the user to select a lens designed for the application at hand: wide-angle, telephoto, low-light, etc. So each lens does not require its own shutter, DSLRs use a focal-plane shutter in front of the imager, behind the mirror.
The mirror flipping out of the way at the moment of exposure makes a distinctive "clack" sound.
Bridge cameras
Bridge are higher-end digital cameras that physically and ergonomically resemble DSLRs and share with them some advanced features, but share with compacts the use of a fixed lens and a small sensor. Like compacts, most use live preview to frame the image. Their autofocus uses the same contrast-detect mechanism, but many bridge cameras have a manual focus mode, in some cases using a separate focus ring, for greater control. They originally "bridged" the gap between affordable point-and-shoot cameras and the then unaffordable earlier digital SLRs.
Due to the combination of big physical size but a small sensor, many of these cameras have very highly specified lenses with large zoom range and fast aperture, partially compensating for the inability to change lenses. On some, the lens qualifies as superzoom. To compensate for the lesser sensitivity of their small sensors, these cameras almost always include an image stabilization system to enable longer handheld exposures.
These cameras are sometimes marketed as and confused with digital SLR cameras since the appearance is similar. Bridge cameras lack the reflex viewing system of DSLRs, are usually fitted with fixed (non-interchangeable) lenses (although some have a lens thread to attach accessory wide-angle or telephoto converters), and can usually take movies with sound. The scene is composed by viewing either the liquid crystal display or the electronic viewfinder (EVF). Most have a longer shutter lag than a true dSLR, but they are capable of good image quality (with sufficient light) while being more compact and lighter than DSLRs. High-end models of this type have comparable resolutions to low and mid-range DSLRs. Many of these cameras can store images in a Raw image format, or processed and JPEG compressed, or both. The majority have a built-in flash similar to those found in DSLRs.
In bright sun, the quality difference between a good compact camera and a digital SLR is minimal but bridgecams are more portable, cost less and have a similar zoom ability to dSLR. Thus a Bridge camera may better suit outdoor daytime activities, except when seeking professional-quality photos.[5]
In low light conditions and/or at ISO equivalents above 800, most bridge cameras (or megazooms) lack in image quality when compared to even entry level DSLRs. However, they do have one major advantage, often not appreciated:- their much larger depth of field due to the small sensor as compared to a DSLR, allowing larger apertures with shorter exposure times.
A 3D Photo Mode was introduced in 2011, whereby the camera automatically takes a second image from a slightly different perspective and provides a standard .MPO file for stereo display.
Compact digital cameras
Compact cameras are designed to be tiny and portable and are particularly suitable for casual and "snapshot" use. Hence, they are also called point-and-shoot cameras. The smallest, generally less than 20 mm thick, are described as subcompacts or "ultra-compacts" and some are nearly credit card size.
Most, apart from ruggedized or water-resistant models, incorporate a retractable lens assembly allowing a thin camera to have a moderately long focal length and thus fully exploit an image sensor larger than that on a camera phone, and a mechanized lens cap to cover the lens when retracted. The retracted and capped lens is protected from keys, coins and other hard objects, thus making it a thin, pocketable package. Subcompacts commonly have one lug and a short wrist strap which aids extraction from a pocket, while thicker compacts may have two lugs for attaching a neck strap.
Compact cameras are usually designed to be easy to use, sacrificing advanced features and picture quality for compactness and simplicity; images can usually only be stored using lossy compression (JPEG). Most have a built-in flash usually of low power, sufficient for nearby subjects. Live preview is almost always used to frame the photo. Most have limited motion picture capability. Compacts often have macro capability and zoom lenses but the zoom range is usually less than for bridge and DSLR cameras. Generally a contrast-detect autofocus system, using the image data from the live preview feed of the main imager, focuses the lens.
Typically, these cameras incorporate a nearly-silent leaf shutter into their lenses.
For lower cost and smaller size, these cameras typically use image sensors with a diagonal of approximately 6 mm, corresponding to a crop factor around 6. This gives them weaker low-light performance, greater depth of field, generally closer focusing ability, and smaller components than cameras using larger sensors.
Starting in 2011, some compact digital cameras can take 3D still photos. These 3D compact stereo cameras can capture 3D panoramic photos for play back on a 3D TV. Some of these are rugged and waterproof, and some have GPS, compass, barometer and altimeter.
Types of digital cameras
Digital cameras are made in a wide range of sizes, prices and capabilities. The majority are camera phones, operated as a mobile application through the cellphone menu. Professional photographers and many amateurs use larger, more expensive digital single-lens reflex cameras (DSLR) for their greater versatility. Between these extremes lie digital compact cameras and bridge digital cameras that "bridge" the gap between amateur and professional cameras. Specialized cameras including multispectral imaging equipment and astrographs continue to serve the scientific, military, medical and other special purposes for which digital photography was invented.
Digital cameras
A digital camera (or digicam) is a camera that takes video or still photographs, or both, digitally by recording images via an electronic image sensor. It is the main device used in the field of digital photography. Most 21st century cameras are digital.
Digital cameras can do things film cameras cannot: displaying images on a screen immediately after they are recorded, storing thousands of images on a single small memory device, and deleting images to free storage space. The majority, including most compact cameras, can record moving video with sound as well as still photographs. Some cancrop and stitch pictures and perform other elementary image editing. Some have a GPS receiver built in, and can produce Geotagged photographs.
The optical system works the same as in film cameras, typically using a lens with a variable diaphragm to focus light onto an image pickup device. The diaphragm and shutter admit the correct amount of light to the imager, just as with film but the image pickup device is electronic rather than chemical. Most digicams, apart from camera phones and a few specialized types, have a standard tripod screw.
Digital cameras are incorporated into many devices ranging from PDAs and mobile phones (called camera phones) to vehicles. The Hubble Space Telescope and otherastronomical devices are essentially specialized digital cameras.
Pentax Kseries
The Pentax K1000 (originally marked the Asahi Pentax K1000) is an interchangeable lens, 35 mm film, single-lens reflex (SLR) camera, manufactured by Asahi Optical Co., Ltd.from 1976 to 1997, originally in Japan. It uses a horizontal travel, rubberized silk cloth focal plane shutter with a speed range of 1/1000 second to 1 second, along with Bulb and a flash X-sync of 1/60 second. It is 91.4 millimetres tall, 143 mm wide, and 48 mm deep, and weighs 620 grams. The body was finished in black leather with chrome trim only, although early production Pentax K1000 SE bodies had brown leather with chrome trim.
Design history.
Beginning in 1975, there was a complete overhaul of Asahi Optical's Pentax SLR line when the first of the Pentax K-series SLRs were introduced - the Pentax K2, KM and KX. The SMC Pentax K mount lenses were introduced at the same time. The Pentax K1000 and K2 DMD followed in 1976. The K2/K2 DMD was the top-of-the-line model with aperture priority; the KX, the full-featured manual mechanical model; the KM, the basic manual mechanical model. The 1000 in the K1000's name was a direct reference that its top shutter speed was superior to Asahi Optical's previous bottom-of-the-line Pentax Spotmatic SP 500 of 1971. The spartan viewfinder had 91% coverage.
The 1970s and 1980s were an era of intense competition between the major SLR brands: Pentax, Nikon, Canon, Minolta and Olympus. Between 1975 and 1985, there was a dramatic shift away from heavy all-metal manual mechanical camera bodies to much more compact bodies with integrated circuit (IC) electronic automation. In addition, because of rapid advances in electronics, the brands continually leap frogged each other with models having new or more automatic features. The industry was trying to expand.
Against this backdrop, Asahi Optical continued its use of 42 mm diameter, Universal M42 screw lens mount (often called the Pentax screw mount. The mount type was introduced by the German KW Praktica or Zeiss-Dresden Contax S SLRs circa 1948) in its Pentax Spotmatic SLR and Takumar lens lineages.
There was another overhaul of Asahi Optical's Pentax line beginning in 1976 when the M-series SLRs and SMC Pentax-M lenses came out, starting with the aperture priority only Pentax ME. The ME introduced an entirely new chassis and was very compact: 82.5 mm height, 131 mm width, 49.5 mm depth and 460 g weight. The M-series remained among the smallest and lightest full frame 35 mm film SLRs ever made. Asahi Optical also redesigned their lenses to be more compact, although the SMC Pentax-M lenses generally kept the optical formulae of the SMC Pentax lenses.
The K1000 was the only K-series SLR to survive the M-series changeover. It also survived the dramatic electronic growth of the M-series in the wake of the 1976 introduction of the landmark Canon AE-1, the autofocus (AF) SLR camera revolution following the landmark Minolta Maxxum 7000 in 1985 and the point-and-shoot (P/S) revolution following the confluence of cheap microchip electronics, high speed film and small aperture zoom lenses circa 1990.
The K1000 gained a unique popularity and sold well for many years as its lack of features came to be regarded an important feature in and of itself. Its spartan nature, without autoexposure or autofocus, meant a sturdy and reliable camera for a low price. The K1000 became highly recommended for student photographers.
Production was not ended until 1997 when manufacturing costs of its older design and supply of its mechanical and electronic parts (especially precision analogue microgalvanometers for the light meter) finally became untenable. It was replaced by the highly computerized Pentax ZX-M (also called MZ-M) in 1998.
The Asahiflex Series
The period around 1950 marked the return of the Japanese photographic industry to the vigorous level of the early 1940s, and its emergence as a major exporter. The newly reborn industry had sold many of its cameras to the occupation forces (with hugely more disposable income than the Japanese) and they were well received. The Korean War saw a huge influx of journalists and photographers to the Far East, where they were impressed by lenses from companies such as Nikon and Canon for their Leica rangefinder cameras, and also by bodies by these and other companies to supplement and replace the Leica and Contax cameras they were using. This was the background to the development of Asahi Optical's first camera.
Disposable cameras and disposable digital cameras.
The disposable or single-use camera is a simple box camera sold with a roll of film installed, meant to be used once. Most use focus free lenses. Some are equipped with an integrated flash unit, and there are even waterproof versions for underwater photography. Internally, the cameras use a 135 film or an APScartridge.
While some disposables contain an actual cartridge as used for loading normal, reusable cameras,[1] others just have the film wound internally on an open spool. The whole camera is handed in for processing. Some of the cameras are recycled, i.e. refilled with film and resold.
"Disposable" digital cameras are an innovation, these types of cameras forgo film and use digital technology to take pictures. The cameras are returned for "processing" in the same fashion as film cameras.
In general the one-time-use camera represents a return to the business model pioneered by Kodak for their KODAK camera, predecessor to the Brownie camera; they are particularly popular in situations where a reusable camera would be easily stolen or damaged, when one's regular camera is forgotten, or if one cannot afford a regular camera.
A company called Photo-Pac produced a cardboard camera beginning in 1949 which shot 8 exposures and which was mailed-in for processing. Cameras were expensive, and would often have been left safely at home when lovely scenes presented themselves. Frustrated with missing photo opportunities, H. M. Stiles had invented a way to enclose 35mm film in an inexpensive enclosure without the expensive precision film transport mechanism. It cost $1.29. Though incredibly similar to the familiar single-use cameras today, Photo-Pac failed to make a permanent impression on the market.[2]
In the 60's, a French company called FEX, introduced a disposable simple plastic camera called "Photo Pack Matic" featuring 12 photos ( 4x4 cm ).
The currently familiar disposable camera was developed by Fujifilm in 1986. Their Utsurun-Desu ("It takes pictures"[3]) or QuickSnap line used 35 mm film, while Eastman Kodak's 1987 Fling was based on 110 film.[4]Kodak released a 35 mm version in 1988,[5] and in 1989 renamed the 35 mm version the FunSaver and discontinued the 110 Fling.[6]
In Japan, the Utsurun was released in 1986 for 1380 yen and became widely accepted. Because of the immediate appeal, companies like Konica, Canon and Nikon soon produced their own models. To stay competitive, Fuji introduced advanced features to its original model such as panoramic photography, waterproofing and the inclusion of a flash. Some cameras even have a manual zoom feature which works by shifting two lenses in front of the shutter.
By 2005 disposable cameras were a staple of the consumer film camera market and flash-equipped disposables were the norm.
Digital one-time-use cameras (and also digital one-time-use camcorders) are available in some markets; for example the US saw the introduction of a digital camera in 2004.[14] Digital disposables have not had the success of their film based counterparts, possibly from the expense of the process (especially compared to normal digital camera use) and the poor quality of the images compared to either a typical digital camera, or a disposable film camera. Usually, the display shows the number of shots remaining, and once this is completed, the camera is returned to the store. The digital files are then extracted from the camera, and in return for keeping the camera, they are printed out or stored to CD (or DVD in the case of the Video Camera [15]) for the customer. Almost all digital 'single use' cameras have been successfully hacked[16] to eliminate the need to return them to the store. The motivations for such hacking include saving money and, more commonly, the challenge of overcoming superficial impositions (such as a 25 shot limit on an internal memory that can store 100 images).
History of the camera.
The history of the camera can be traced back much further than the introduction of photography. Photographic cameras evolved from the camera obscura, and continued to change through many generations of photographic technology, including Daguerreotypes, calotypes, dry plates, film, and digital cameras.
Photographic cameras were a development of the camera obscura, a device dating back to the ancient Chinese[1] and ancient Greeks,[2][3] which uses a pinhole or lens to project an image of the scene outside upside-down onto a viewing surface.
Scientist-monk Roger Bacon also studied the matter. Bacon's notes and drawings, published as Perspectiva in 1267, are partly clouded with theological material describing how the Devil can insinuate himself through the pinhole by magic,[4] and it is not clear whether or not he produced such a device. On 24 January 1544 mathematician and instrument maker Reiners Gemma Frisius of Leuven University used one to watch a solar eclipse, publishing a diagram of his method in De Radio Astronimica et Geometrico in the following year.[5] In 1558 Giovanni Batista della Porta was the first to recommend the method as an aid to drawing.[6]
Before the invention of photographic processes there was no way to preserve the images produced by these cameras apart from manually tracing them. The earliest cameras were room-sized, with space for one or more people inside; these gradually evolved into more and more compact models such as that by Niépce's time portable handheld cameras suitable for photography were readily available. The first camera that was small and portable enough to be practical for photography was built by Johann Zahn in 1685, though it would be almost 150 years before such an application was possible.
Early fixed images
The first photograph was taken approximately 1817 by Nicéphore Niépce[7][8] using cameras of his own making; the photographs though were not permanent, and faded away. Later, in 1827, he made permanent images using a sliding wooden box camera made by Charles and Vincent Chevalier in Paris, France. He made his first permanent photograph in 1827 by coating a pewter plate with bitumen and exposing the plate to light.[9] The bitumen hardened where light struck. The unhardened areas were then dissolved away.
Daguerreotypes and calotypes
Louis Daguerre and Joseph Nicéphore Niépce (who was Daguerre's partner, but died before their invention was completed) invented the first practical photographic method, which was named the daguerreotype, in 1836. Daguerre coated a copper plate with silver, then treated it with iodine vapor to make it sensitive to light. The image was developed by mercury vapor and fixed with a strong solution of ordinary salt (sodium chloride). William Fox Talbot perfected a different process, the calotype, in 1840. Both used cameras that were little different from Zahn's model, with a sensitized plate or sheet of paper placed in front of the viewing screen to record the image. Focusing was generally via sliding boxes.
Dry plates.
Collodion dry plates had been available since 1855, thanks to the work of Désiré van Monckhoven, but it was not until the invention of the gelatin dry plate in 1871 by Richard Leach Maddox that they rivalled wet plates in speed and quality. Also, for the first time, cameras could be made small enough to be hand-held, or even concealed. There was a proliferation of various designs, from single- and twin-lens reflexes to large and bulky field cameras, handheld cameras, and even cameras disguised as pocket watches, hats, or other objects.
The shortened exposure times that made candid photography possible also necessitated another innovation, the mechanical shutter. The very first shutters were separate accessories, though built-in shutters were common by the turn of the century.
Kodak and the birth of film.
The use of photographic film was pioneered by George Eastman, who started manufacturing paper film in 1885 before switching to celluloid in 1889. His first camera, which he called the "Kodak," was first offered for sale in 1888. It was a very simple box camera with a fixed-focus lens and single shutter speed, which along with its relatively low price appealed to the average consumer. The Kodak came pre-loaded with enough film for 100 exposures and needed to be sent back to the factory for processing and reloading when the roll was finished. By the end of the 19th century Eastman had expanded his lineup to several models including both box and folding cameras.
In 1900, Eastman took mass-market photography one step further with the Brownie, a simple and very inexpensive box camera that introduced the concept of the snapshot. The Brownie was extremely popular and various models remained on sale until the 1960s.
Film also allowed the movie camera to develop from an expensive toy to a practical commercial tool.
Despite the advances in low-cost photography made possible by Eastman, plate cameras still offered higher-quality prints and remained popular well into the 20th century. To compete with rollfilm cameras, which offered a larger number of exposures per loading, many inexpensive plate cameras from this era were equipped with magazines to hold several plates at once. Special backs for plate cameras allowing them to use film packs or rollfilm were also available, as were backs that enabled rollfilm cameras to use plates.
Except for a few special types such as Schmidt cameras, most professional astrographs continued to use plates until the end of the century when electronic photography replaced them.
35mm
Oskar Barnack, who was in charge of research and development at Leitz, decided to investigate using 35 mm cine film for still cameras while attempting to build a compact camera capable of making high-quality enlargements. He built his prototype 35 mm camera (Ur-Leica) around 1913, though further development was delayed for several years by World War I. Leitz test-marketed the design between 1923 and 1924, receiving enough positive feedback that the camera was put into production as the Leica I (for Leitz camera) in 1925. The Leica's immediate popularity spawned a number of competitors, most notably the Contax (introduced in 1932), and cemented the position of 35 mm as the format of choice for high-end compact cameras.
Kodak got into the market with the Retina I in 1934, which introduced the 135 cartridge used in all modern 35 mm cameras. Although the Retina was comparatively inexpensive, 35 mm cameras were still out of reach for most people and rollfilm remained the format of choice for mass-market cameras. This changed in 1936 with the introduction of the inexpensive Argus A and to an even greater extent in 1939 with the arrival of the immensely popular Argus C3. Although the cheapest cameras still used rollfilm, 35 mm film had come to dominate the market by the time the C3 was discontinued in 1966.
The fledgling Japanese camera industry began to take off in 1936 with the Canon 35 mm rangefinder, an improved version of the 1933 Kwanon prototype. Japanese cameras would begin to become popular in the West after Korean War veterans and soldiers stationed in Japan brought them back to the United States and elsewhere.
TLRs and SLRs.
The first practical reflex camera was the Franke & Heidecke Rolleiflex medium format TLR of 1928. Though both single- and twin-lens reflex cameras had been available for decades, they were too bulky to achieve much popularity. The Rolleiflex, however, was sufficiently compact to achieve widespread popularity and the medium-format TLR design became popular for both high- and low-end cameras.
A similar revolution in SLR design began in 1933 with the introduction of the Ihagee Exakta, a compact SLR which used 127 rollfilm. This was followed three years later by the first Western SLR to use 35mm film, the Kine Exakta (World's first true 35mm SLR wasSoviet "Sport" camera, marketed several months before Kine Exakta, though "Sport" used its own film cartridge). The 35mm SLR design gained immediate popularity and there was an explosion of new models and innovative features after World War II. There were also a few 35mm TLRs, the best-known of which was the Contaflex of 1935, but for the most part these met with little success.
The first major post-war SLR innovation was the eye-level viewfinder, which first appeared on the Hungarian Duflex in 1947 and was refined in 1948 with the Contax S, the first camera to use a pentaprism. Prior to this, all SLRs were equipped with waist-level focusing screens. The Duflex was also the first SLR with an instant-return mirror, which prevented the viewfinder from being blacked out after each exposure. This same time period also saw the introduction of the Hasselblad 1600F, which set the standard for medium format SLRs for decades.
In 1952 the Asahi Optical Company (which later became well-known for its Pentax cameras) introduced the first Japanese SLR using 35mm film, the Asahiflex. Several other Japanese camera makers also entered the SLR market in the 1950s, including Canon, Yashica, and Nikon. Nikon's entry, the Nikon F, had a full line of interchangeable components and accessories and is generally regarded as the first system camera. It was the F, along with the earlier S series of rangefinder cameras, that helped establish Nikon's reputation as a maker of professional-quality equipment.
Instant cameras.
While conventional cameras were becoming more refined and sophisticated, an entirely new type of camera appeared on the market in 1948. This was the Polaroid Model 95, the world's first viable instant-picture camera. Known as a Land Camera after its inventor, Edwin Land, the Model 95 used a patented chemical process to produce finished positive prints from the exposed negatives in under a minute. The Land Camera caught on despite its relatively high price and the Polaroid lineup had expanded to dozens of models by the 1960s. The first Polaroid camera aimed at the popular market, the Model 20 Swinger of 1965, was a huge success and remains one of the top-selling cameras of all time.
Digital cameras.
Digital cameras differ from their analog predecessors primarily in that they do not use film, but capture and save photographs on digital memory cards or internal storage instead. Their low operating costs have relegated chemical cameras to niche markets. Digital cameras now include wireless communication capabilities (for example Wi-Fi or Bluetooth) to transfer, print or share photos, and are commonly found on mobile phones.
Early development.
Analog electronic cameras.
Handheld electronic cameras, in the sense of a device meant to be carried and used like a handheld film camera, appeared in 1981 with the demonstration of the Sony Mavica(Magnetic Video Camera). This is not to be confused with the later cameras by Sony that also bore the Mavica name. This was an analog camera, in that it recorded pixel signals continuously, as videotape machines did, without converting them to discrete levels; it recorded television-like signals to a 2 × 2 inch "video floppy".[16] In essence it was a video movie camera that recorded single frames, 50 per disk in field mode and 25 per disk in frame mode. The image quality was considered equal to that of then-current televisions.
Analog electronic cameras do not appear to have reached the market until 1986 with the Canon RC-701. Canon demonstrated a prototype of this model at the 1984 Summer Olympics, printing the images in the Yomiuri Shimbun, a Japanese newspaper. In the United States, the first publication to use these cameras for real reportage was USA Today, in its coverage of World Series baseball. Several factors held back the widespread adoption of analog cameras; the cost (upwards of $20,000), poor image quality compared to film, and the lack of quality affordable printers. Capturing and printing an image originally required access to equipment such as a frame grabber, which was beyond the reach of the average consumer. The "video floppy" disks later had several reader devices available for viewing on a screen, but were never standardized as a computer drive.
The early adopters tended to be in the news media, where the cost was negated by the utility and the ability to transmit images by telephone lines. The poor image quality was offset by the low resolution of newspaper graphics. This capability to transmit images without a satellite link was useful during the Tiananmen Square protests of 1989 and the firstGulf War in 1991.
US government agencies also took a strong interest in the still video concept, notably the US Navy for use as a real time air-to-sea surveillance system.
The first analog electronic camera marketed to consumers may have been the Canon RC-250 Xapshot in 1988. A notable analog camera produced the same year was the Nikon QV-1000C, designed as a press camera and not offered for sale to general users, which sold only a few hundred units. It recorded images in greyscale, and the quality in newspaper print was equal to film cameras. In appearance it closely resembled a modern digital single-lens reflex camera. Images were stored on video floppy disks.
Silicon Film, a proposed digital sensor cartridge for film cameras that would allow 35 mm cameras to take digital photographs without modification was announced in late 1998. Silicon Film was to work like a roll of 35 mm film, with a 1.3 megapixel sensor behind the lens and a battery and storage unit fitting in the film holder in the camera. The product, which was never released, became increasingly obsolete due to improvements in digital camera technology and affordability. Silicon Films' parent company filed for bankruptcy in 2001.
The arrival of the true digital cameras.
The first true digital camera that recorded images as a computerized file was likely the Fuji DS-1P of 1988, which recorded to a 16 MB internal memory card that used a battery to keep the data in memory. This camera was never marketed in the United States, and has not been confirmed to have shipped even in Japan.
The first commercially available digital camera was the 1990 Dycam Model 1; it also sold as the Logitech Fotoman. It used a CCD image sensor, stored pictures digitally, and connected directly to a computer for download.[18][19][20]
In 1991, Kodak brought to market the Kodak DCS-100, the beginning of a long line of professional Kodak DCS SLR cameras that were based in part on film bodies, often Nikons. It used a 1.3 megapixel sensor and was priced at $13,000.
The move to digital formats was helped by the formation of the first JPEG and MPEG standards in 1988, which allowed image and video files to be compressed for storage. The first consumer camera with a liquid crystal display on the back was the Casio QV-10 in 1995, and the first camera to use CompactFlash was the Kodak DC-25 in 1996.
The marketplace for consumer digital cameras was originally low resolution (either analog or digital) cameras built for utility. In 1997 the first megapixel cameras for consumers were marketed. The first camera that offered the ability to record video clips may have been the Ricoh RDC-1 in 1995.
1999 saw the introduction of the Nikon D1, a 2.74 megapixel camera that was the first digital SLR developed entirely by a major manufacturer, and at a cost of under $6,000 at introduction was affordable by professional photographers and high-end consumers. This camera also used Nikon F-mount lenses, which meant film photographers could use many of the same lenses they already owned.
A camera is a device that records and stores images. These images may be still photographs or moving images such as videos or movies. The term camera comes from the camera obscura (Latin for "dark chamber"), an early mechanism for projecting images. The modern camera evolved from the camera obscura.
Cameras may work with the light of the visible spectrum or with other portions of the electromagnetic spectrum. A camera generally consists of an enclosed hollow with an opening (aperture) at one end for light to enter, and a recording or viewing surface for capturing the light at the other end. A majority of cameras have a lenspositioned in front of the camera's opening to gather the incoming light and focus all or part of the image on the recording surface. The diameter of the aperture is often controlled by a diaphragm mechanism, but some cameras have a fixed-size aperture. Most 20th century cameras used photographic film as a recording surface, while the majority of new ones now use an electronic image sensor.
The still camera takes one photo each time the user presses the shutter button. A typical movie camera continuously takes 24 film frames per second as long as the user holds down the shutter button, or until the shutter button is pressed a second time.
From its inception, the camera has been instrumental in the recording of still images from then-present surroundings, and further modifications led to the development of motion picture sequences in the late 19th century. Cameras and the exhibition of camera-captured images are widely used in both professional and consumer settings in the 21st century for both mass and interpersonal communication purposes.
You can build this camera in a few simple steps:
Technical specifications: Pinhole Diameter (aperture) is 0.16mm, Focal Length 20mm and f/130. Uses all types of 35mm film and produces great results. Packaged in a handsome box (10 1/4” W x 7 3/4” H x 1” D).
How to make a pin hole camera.
There are a number of ways to build this sort of camera -- some enthusiasts have even used old refrigerators and cars as light-tight boxes. One of the most popular designs uses an ordinary cylinder oatmeal box, coffee can, or similar container. Its easiest to use a cardboard container with a removable plastic lid.
You can build this camera in a few simple steps:- The first thing to do is paint the lid black, inside and out . This helps light-proof the box. Be sure to use flat black paint , rather than glossy paint that will reflect more light.
- Cut a small hole (about the size of a matchbox) in the center of the canister bottom(the nonremovable side).
- Cut out a piece of heavy-duty aluminum foil , or heavy black paper, about twice the size of the hole in the bottom of the canister.
- Take a No. 10 sewing needle and carefully make a hole in the center of the foil . You should only insert the needle halfway, or the hole will be too big. For best results, position the foil between two index cards and rotate the needle as you push it through.
- Tape the foil over the hole in the bottom of the canister , so the pinhole is centered. Attach the foil securely, with black tape , so light only shines through the pinhole.
- All you need for the shutter is a piece of heavy black paper large enough to cover most of the cannister bottom. Tape one side of the paper securely to the side of the cannister bottom , so it makes a flap over the pinhole in the middle. Tape the other side of the flap closed on the other side of the pinhole . Keep the flap closed until you are ready to take a picture.
- To load the camera, attach any sort of film or photographic paper to the inside of the canister lid . Of course, for the film to work, you must load it and develop it in complete darkness. With this camera design, you won't be able to simply drop the film off at the drug store -- you'll have to develop it yourself or get someone to help you.
Choosing a good camera design, film type and exposure time is largely a matter of trial and error. But, as any pinhole enthusiast will tell you, this experimentation is the most interesting thing about making your own camera.
Match box pinhole camera
Alan of alspix has come up with a nice a easy solution for creating a pinhole camera from a simple matchbox. here is how he describes it (check out alspix blog for the most updated instructions):
My first couple of 35mm pinhole cameras attempted to be panoramic, wide angle jobbies but this time I thought it would be nice to get back to the classic square format.
Here's my latest contraption which uses 35mm film to provide square images of 24 x 24mm. Using this size means that you can get up to 50 exposures on a standard roll of 36 exposure film. Now that's what I call economy!
The image edges suffer from distortion that gives a "Diana" quality to the pictures. In fact, the images look very "toy camera" like indeed, except that the pinhole allows some really good close ups due to the DOF of the pinhole.
It's also costs pretty much nothing to build - certainly a lot cheaper than a $100 Diana off ebay!
So far I've only run a single roll of colour film through it, which I then developed in B&W chemicals,so the results are a bit odd but they did prove it worked. I'll be posting additional photos (colour too!) onto my flickr site, check it out .
All you need is a matchbox, an empty roll of 35mm film, some new 35mm film, some black tape and a bit of foil! at the end, this is wht you will get, a small "spy like" pinhole camera.
